Overview
Intravascular Ultrasound (IVUS) represents a significant advancement in cardiac imaging that can dramatically improve outcomes for patients undergoing coronary interventions. This comprehensive analysis examines what IVUS is, demonstrates its clinical effectiveness through robust evidence, identifies which patients benefit most, and addresses practical considerations including typical usage patterns and associated risks. Understanding IVUS empowers patients to engage in informed discussions with their cardiologists about optimal treatment approaches for their specific cardiac conditions.
What is IVUS?

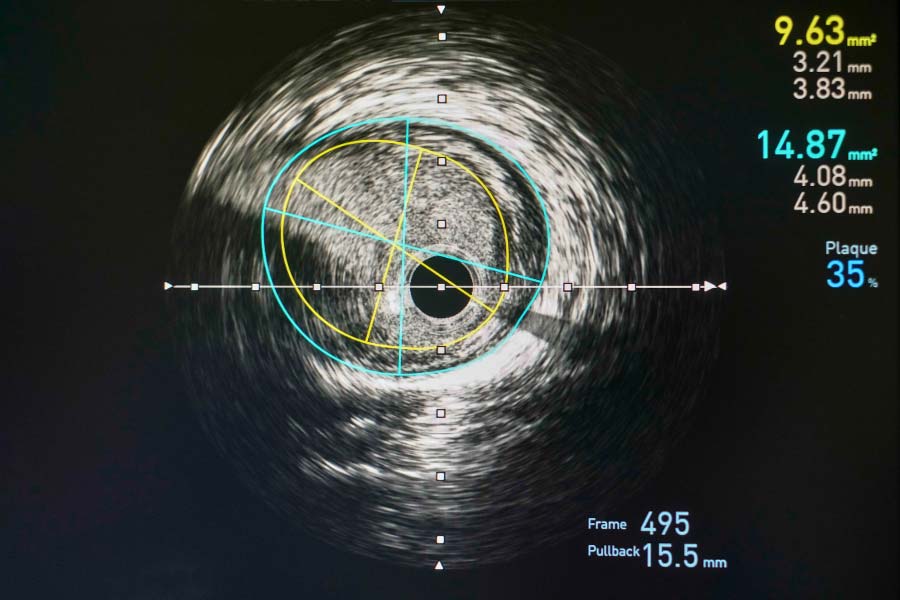

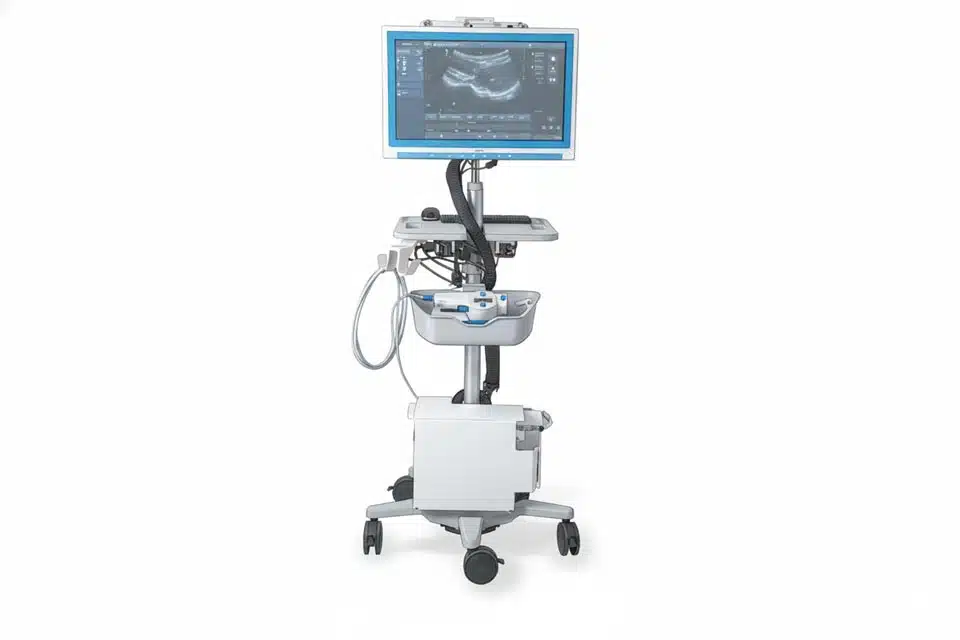

IVUS stands for Intravascular Ultrasound, a medical imaging technique used during cardiac catheterization procedures to visualize the inside of coronary arteries. This technology uses high-frequency sound waves to create detailed, real-time cross-sectional images of blood vessels from the inside out.
IVUS provides comprehensive information about vessel anatomy that cannot be seen with traditional angiography alone. It can assess plaque burden, vessel size, and stent expansion during percutaneous coronary intervention (PCI) procedures. The technology is particularly valuable for identifying high-risk plaque characteristics, such as thin-cap fibroatheromas and large plaque burden, even in vessels that appear only mildly diseased on standard angiography (Stone et al., 2011).
During stent implantation procedures, IVUS guidance helps optimize stent sizing, placement, and expansion. Studies have consistently shown that IVUS-guided stent implantation significantly reduces adverse cardiovascular events compared to angiography-guided procedures alone, with benefits including lower rates of target vessel failure, stent thrombosis, and the need for repeat revascularization (Zhang et al., 2018). Meta-analyses have confirmed these benefits across large patient populations (Darmoch et al., 2020).
The imaging technology has also proven valuable for assessing atherosclerosis progression and regression in research settings, particularly when evaluating the effects of intensive lipid-lowering therapy with statins (Nissen et al., 2004). Additional studies have demonstrated that maximal statin therapy can induce regression of coronary atherosclerosis (Nicholls et al., 2011).
Does IVUS work?
Yes, IVUS works effectively for guiding coronary interventions and improving patient outcomes. Multiple high-quality randomized controlled trials have demonstrated that IVUS-guided stent implantation significantly reduces target vessel failure compared to angiography guidance alone, with one large trial showing a reduction from 5.4% to 2.9% at 12 months (Zhang et al., 2018).
The evidence is particularly strong for complex coronary lesions, where intravascular imaging-guided PCI reduces adverse events by approximately 36% compared to angiography guidance (Lee et al., 2023). Similarly, in patients with acute coronary syndromes, IVUS guidance significantly reduces the composite endpoint of cardiac death, target vessel myocardial infarction, or revascularization from 7.3% to 4.0% at one year (Li et al., 2024).
Large-scale analyses confirm these benefits across diverse patient populations. A comprehensive meta-analysis of over 27,000 patients demonstrated that IVUS-guided PCI significantly reduces cardiovascular death, myocardial infarction, target lesion revascularization, and stent thrombosis compared to angiography-guided procedures (Darmoch et al., 2020).
The effectiveness extends beyond procedural guidance to long-term outcomes, with observational studies showing reduced major adverse cardiac events particularly in complex lesions and acute coronary syndrome presentations (Witzenbichler et al., 2013).
Discover the tests and treatments that could save your life
Get our unbiased and comprehensive report on the latest techniques for heart disease prevention, diagnosis, and treatment.
Why get IVUS?
IVUS should be obtained because it significantly improves clinical outcomes during coronary interventions. The primary reason is that IVUS guidance reduces major adverse cardiovascular events compared to relying on angiography alone, with studies showing reductions in target vessel failure from 5.4% to 2.9% at 12 months (Zhang et al., 2018).
IVUS provides critical information that angiography cannot detect. It can identify high-risk plaque features not visible on angiography that predict future cardiac events, including thin-cap fibroatheromas and large plaque burden even in vessels that appear only mildly diseased (Stone et al., 2011). This capability allows for better risk stratification and treatment planning.
During stent procedures, IVUS optimizes stent sizing, placement, and expansion, which translates into fewer complications. IVUS-guided stenting significantly reduces stent thrombosis, myocardial infarction, and repeat revascularization rates, particularly in complex lesions and high-risk patients (Witzenbichler et al., 2013).
The benefits are particularly pronounced in challenging cases. For complex coronary lesions, intravascular imaging guidance reduces adverse events by 36% compared to angiography alone (Lee et al., 2023). In acute coronary syndromes, IVUS guidance reduces the composite endpoint of death, myocardial infarction, or revascularization from 7.3% to 4.0% (Li et al., 2024).
Simply put, IVUS helps ensure better procedural outcomes and long-term patient safety by providing detailed vessel information that leads to more optimal treatment decisions.
Who benefits most from IVUS?
Patients with complex coronary lesions benefit most from IVUS guidance. Intravascular imaging-guided PCI in complex coronary lesions reduces adverse events by 36% compared to angiography guidance, demonstrating particular value in challenging anatomical situations (Lee et al., 2023).
Patients presenting with acute coronary syndromes also derive significant benefit. IVUS-guided PCI in acute coronary syndrome patients reduces the composite endpoint of cardiac death, target vessel myocardial infarction, or revascularization from 7.3% to 4.0% at one year (Li et al., 2024). Large observational studies confirm that IVUS guidance particularly improves outcomes in acute coronary syndrome presentations (Witzenbichler et al., 2013).
Patients requiring stenting of long coronary lesions show substantial improvement with IVUS guidance. IVUS-guided stenting in long coronary lesions significantly reduces major adverse cardiac events, primarily due to fewer repeat revascularizations (Hong et al., 2015). Earlier studies in long lesions demonstrated significantly lower restenosis rates and target lesion revascularization with IVUS guidance (Oemrawsingh et al., 2002).
Patients with unprotected left main coronary artery disease represent another high-benefit group. Systematic reviews show that IVUS-guided PCI in left main disease provides significantly lower rates of major adverse cardiovascular events, death, myocardial infarction, and stent thrombosis compared to angiography-guided procedures (Mrevlje et al., 2024).
Don’t become a statistic
Learn the latest strategies to prevent, diagnose, and manage heart disease in our one-of-a-kind report.
What are the risks of IVUS?
• Artery damage or dissection: From catheter navigation.
• Heart attack or arrhythmias: Rare but possible during invasive procedures.
• Bleeding or bruising: At the catheter insertion site.
Overall, the risks are minimal when performed by experienced teams.
Conclusion
The evidence overwhelmingly demonstrates that IVUS is a valuable imaging technology that significantly improves outcomes in coronary interventions, particularly for patients with complex lesions, acute coronary syndromes, long lesions, and left main disease. While the risks are minimal when performed by experienced teams, the benefits are substantial and well-documented across multiple high-quality studies.
As healthcare consumers, patients should feel empowered to ask their cardiologists whether IVUS guidance would be appropriate for their specific situation. Understanding the capabilities and benefits of IVUS allows patients to participate more meaningfully in treatment decisions and advocate for evidence-based care. In an era where medical technology continues to evolve rapidly, being an informed healthcare consumer means understanding not just what procedures are available, but which ones offer the best outcomes for your particular condition. IVUS exemplifies how advanced imaging can translate into better patient care—knowledge that every cardiac patient should possess when navigating their treatment options.
